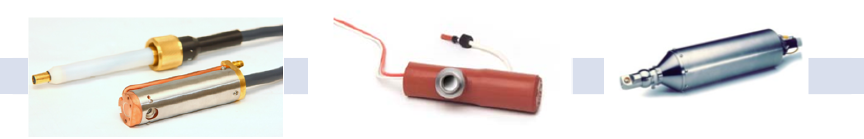

TruFocus’ Filamentary X-ray Technology employs a high quality filament and proprietary focusing Cup design. Years of research enable us to achieve superior Flux Stability, Spectral Purity and long tube life. TFS X-ray sources are widely deployed in industrial, analytical and scientific applications where beam uniformity and superior image quality are critical.
TruFocus Ordered P/N Maximum Target Voltage (kV) Maximum Target Current (mA) Maxim TUBE Power (W) Focal Spot Size (μm) Beam Angle Operation Cooling X-ray Source Data Sheet Sub-System Data Sheets
TFS-3007-HP -30 10* 300* .5 40° Cone Angle Continuous Water
TFS-3007-20 -30 20* 600* .5 Continuous
TFS-3007-FGA -30 7* 210* Continuous No Sub-system
TFS-5109 Continuous No Sub-system
TFS-5110 40 2* 9* .18 Continuous No Sub-system
TFS-5112 10 2* 12* .18 Continuous No Sub-system
6033-FGA -60 3.3* 200 1 Continuous Custom Tube Click to see Custom section
6050 50 1* 50* .18 Continuous No Sub-system
6051 L  50 2* 100* .18 Continuous No Sub-system
6066 -60 3.3 200* 1 ? Continuous Custom Tube Click to see Custom section

Contact us if you do not see what you need: 831-761-9981
