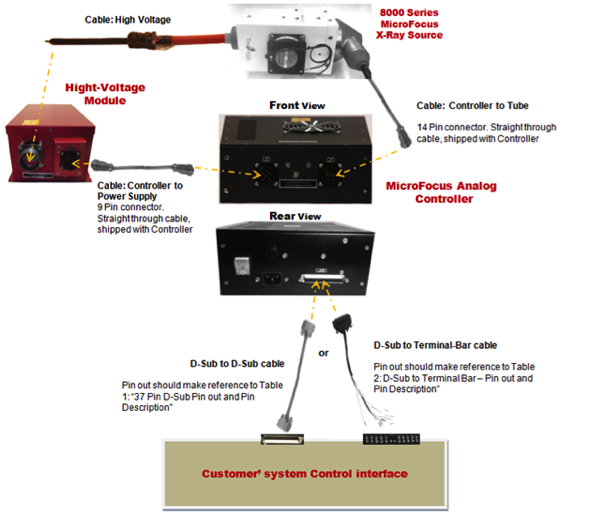

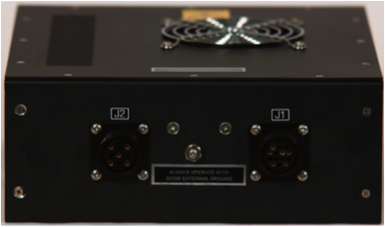

Designed for controlling TruFocus 8000 Series MicroFocus X-Ray Source. To be used with TruFocus’ High Voltage (HV) Module to form a fully programmable HV Power Supply and X-ray Control sub-system with 25 pin D-Sub Analog control interface connector
| TruFocus Ordered P/N | Max. Voltage (kV) | Max. Current (mA) | Max. Power (W) | Pgm. Control Interface | X_ray Sources to be controlled | Interface Type | Cooling Method | Software Driver available | Data Sheets | Subsystem Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| MFX-CTR-60-1-A | 60 | 1 | 60 | Yes | 8060 SW | USB | Air | Yes |  |
|
| MFX-CTR-100-1-A | 100 | 1 | 100 | Yes | 8100 EWC EWF SWS |
USB | Air | Yes | |
|
